Stainless Steel Architectural flexible Mesh
SM- 14305 (Silver)
Material: Stainless Steel 304, 316
Cable Diameter: 0.45mm x 3
Rod Diameter: 0.50 mm
Weight: 2.1 Kg/Sqm
SM-14305T
Material: Bronze
Cable Diameter: 0.45mm x 3
Rod Diameter: 0.50 mm
Weight: 2.3 Kg/Sqm
SM-14305T
Material: Brass
Cable Diameter: 0.45mm x 3
Rod Diameter: 0.50 mm
Weight: 2.3 Kg/Sqm
SM- 12050 (Silver)
Material: Stainless Steel 304, 316
Cable Diameter: 0.4 mm
Rod Diameter: 0.3 mm
Weight: 1.93 Kg/Sqm
SM- 12130
Material: Bronze
Wire diameter: 0.21 mm
Weight: 0.68 Kg/Sqm
SM-2614(Bronze)
Material: Stainless Steel 304, 316
Rod Diameter: 0.6 / 0.8 mm
Weight: 3.66 Kg/Sqm
SM- 1426(Gold)
Material: SS 304, 316, 316L
Open area: 44%
Cable Diameter: 0.70 x 4mm
Cable Pitch: 26.4 mm
Rod Pitch: 3 mm
Rod Diameter: 1.5 mm
Weight: 5.3 Kg/Sqm

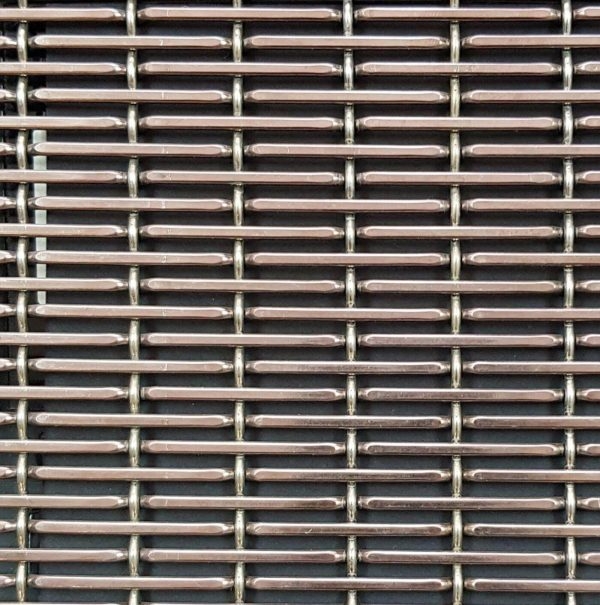

SM- 11535(bronze)
Material: SS 304, 316
Open area: 51%
Weight: 5.53 Kg/Sqm
Cable Diameter: 2 mm x 1
Rod Diameter: 1.5 mm
SM- 4525
Material: SS 304, 316
Weight: 10.02 Kg/Sqm
Cable Diameter: 2 mm
Rod Diameter: 5 mm
Metal Mesh are available in Stainless Steel grade 304 or 316 series (Depends on the design).
Maximum width depends on the pattern & may vary from 3 to 8 meters.
Recommended pattern for the ceiling have an average weight of 2 ~ 6 Kg/m2
Applications: Building exterior facade, Store decoration, metal sunshade, interior partition, restaurant divider, suspended ceiling, etc…
